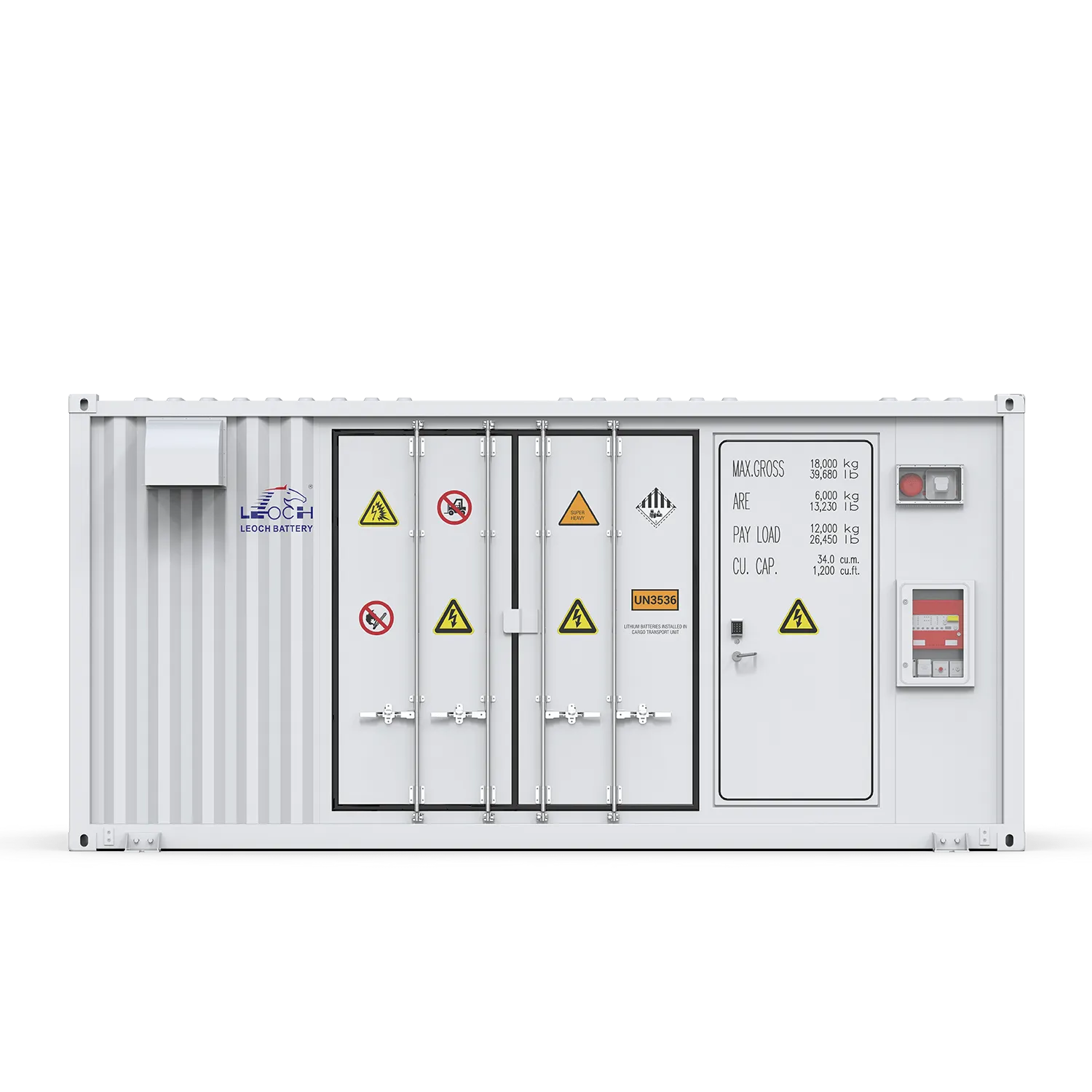

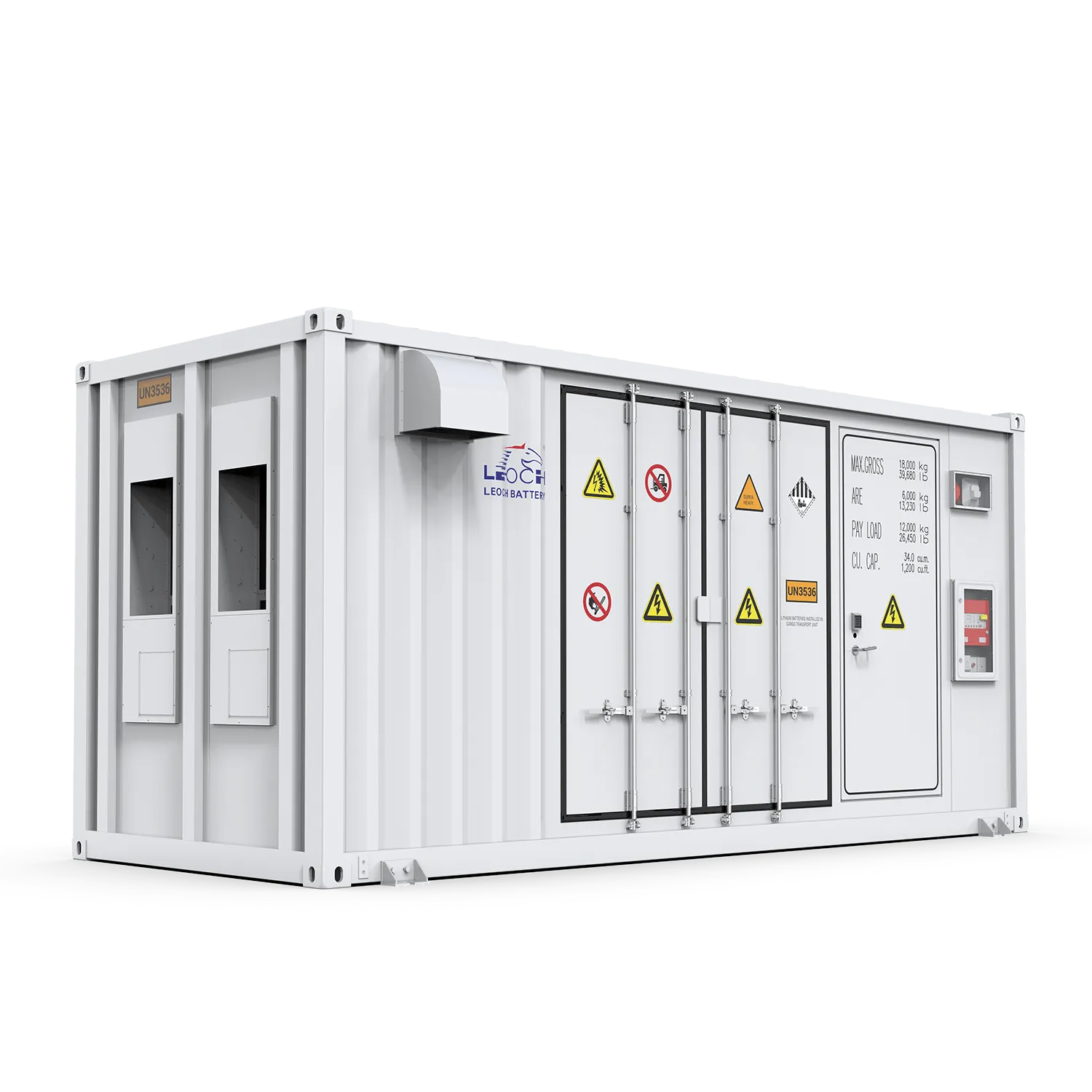

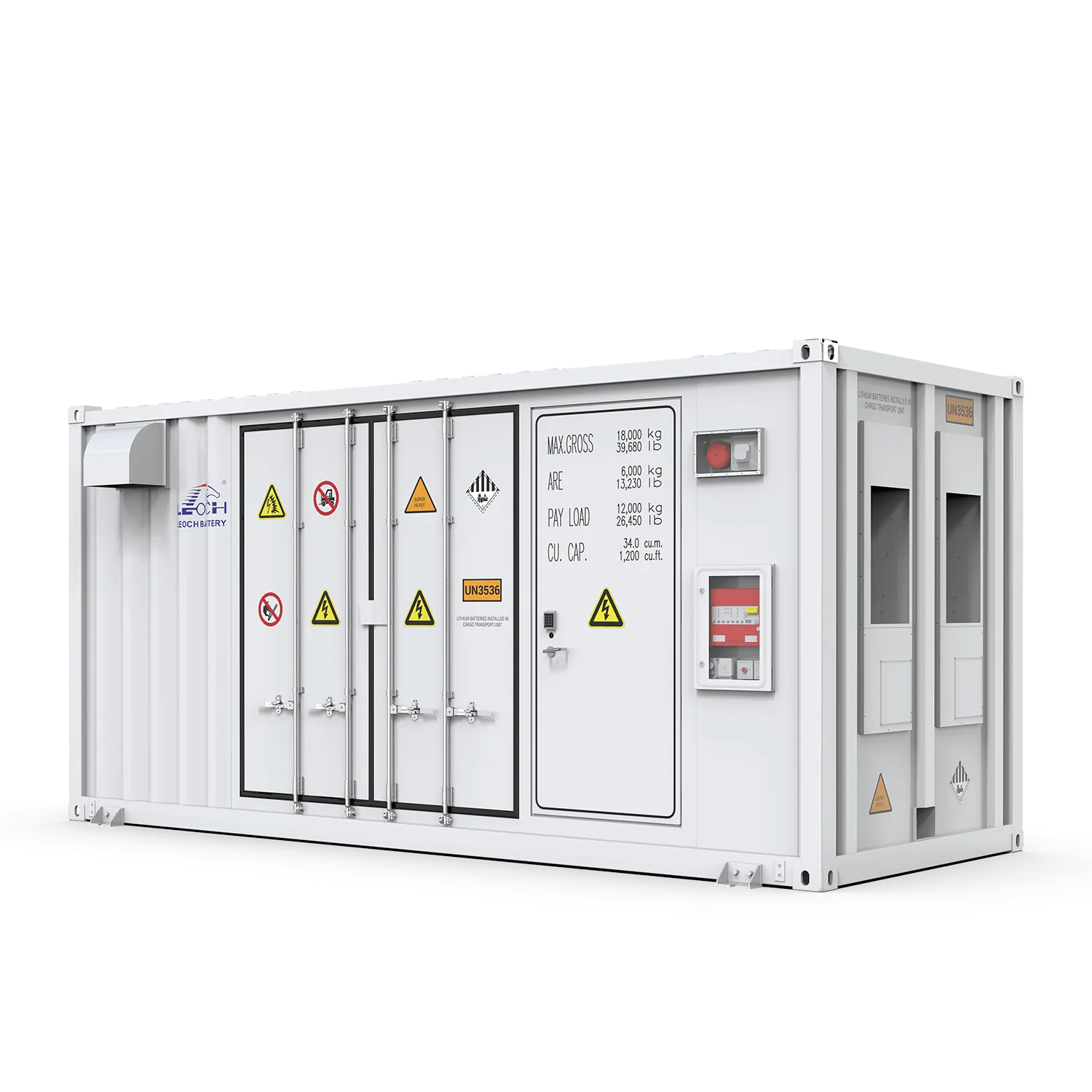

Data Center CU6 Series
The CU6 Series is a containerized data center backup power system designed for skid-mounted, remotely deployed units in large-scale data centers. Housed in a 20ft container, this outdoor backup power system integrates the battery system, EMS, thermal management, fire protection and ventilation, monitoring, lighting, and power distribution. Its prefabricated design supports rapid deployment and plug-and-play operation, helping shorten project implementation time.
Applications:
Data computer rooms
Large‑scale data centers
Intelligent computing centers
Industrial‑commercial
Financial
Transportation government data centers
Emergency backup power supply for industries including industry, medical treatment and petroleum
Key Features
-
Factory‑prefabricated, plug‑and‑play
-
Rapid deployment to shorten project cycle
-
IP54 outdoor‑rated design, C4 corrosion resistance
-
Wide operating ambient temperature range: ‑20℃ ~ 55℃
-
Three‑level management architecture for all‑round system safety monitoring
-
Intelligent EMS for smart operation & maintenance
-
Supports unattended operation
-
Multi‑level fire protection at Pack level, cabinet level and container level
-
System certified to UL9540
Parameter List
| Model | Nominal Voltage(V) | Capacity(Ah) | Energy(kWh) | Dimensions (mm) | Battery Model | Pack quantity | Weight (ton) | Maximum Outpower | Operating voltage range(V) | Charging voltage(V) | Charging current range(A) | Maximum charging current | Temperature environment |
| CU6-512V600-20 | 512 | 600 | 307.2 | 6058*2438 *2896 | RU6-512V200 | 3 | 10.2 | 1710kW@5min | 448V~552V | 552V | 300A~600A | 600A | Charging: 5 ° C~45 ° C Discharge: -15 ° C~+50° C Storage: -10 ° C~+45° C |
| CU6-512V400-20 | 512 | 400 | 204.8 | 6058*2438 *2896 | RU6-512V200 | 2 | 9 | 1140kW@5min | 448V~552V | 552V | 200A~400A | 400A |
