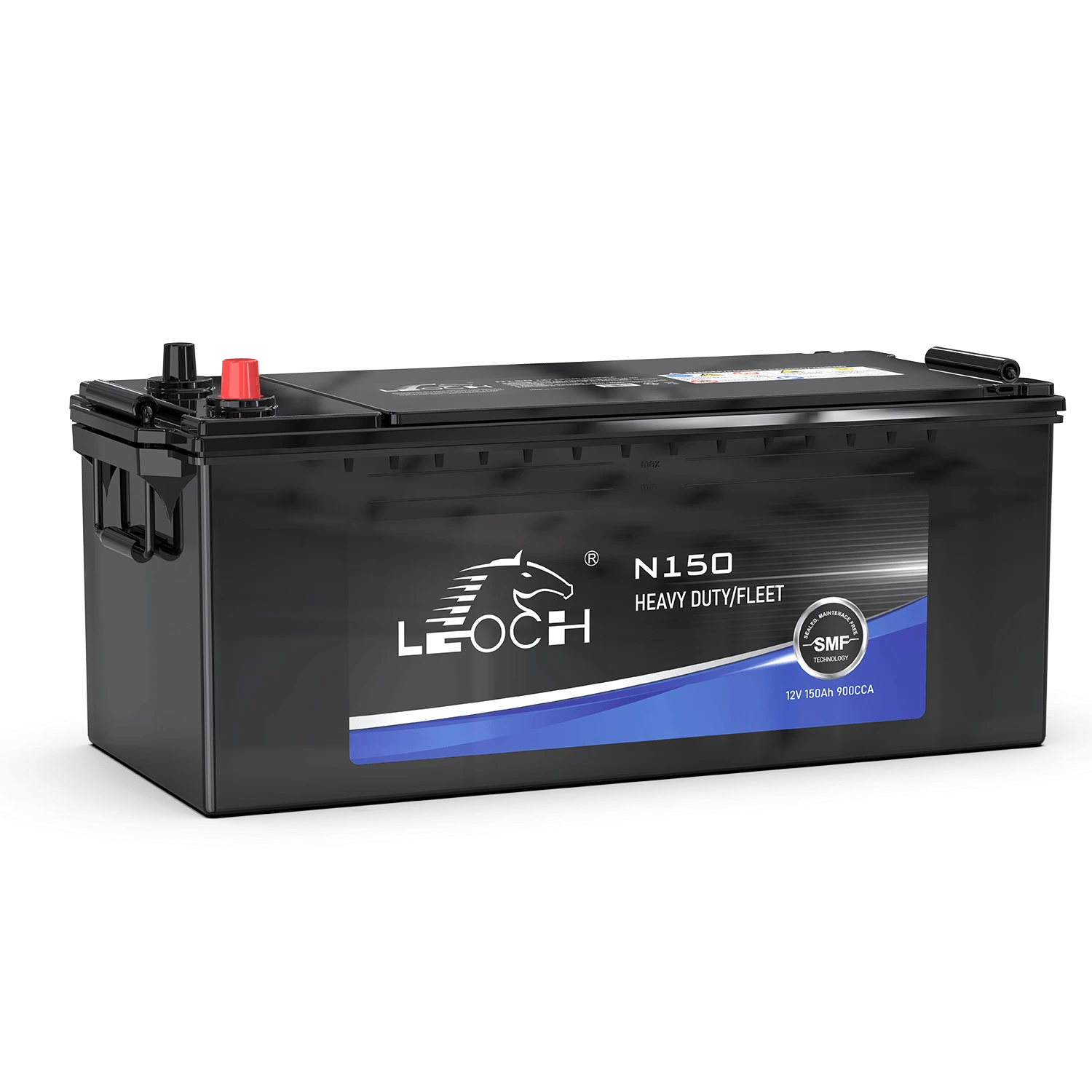

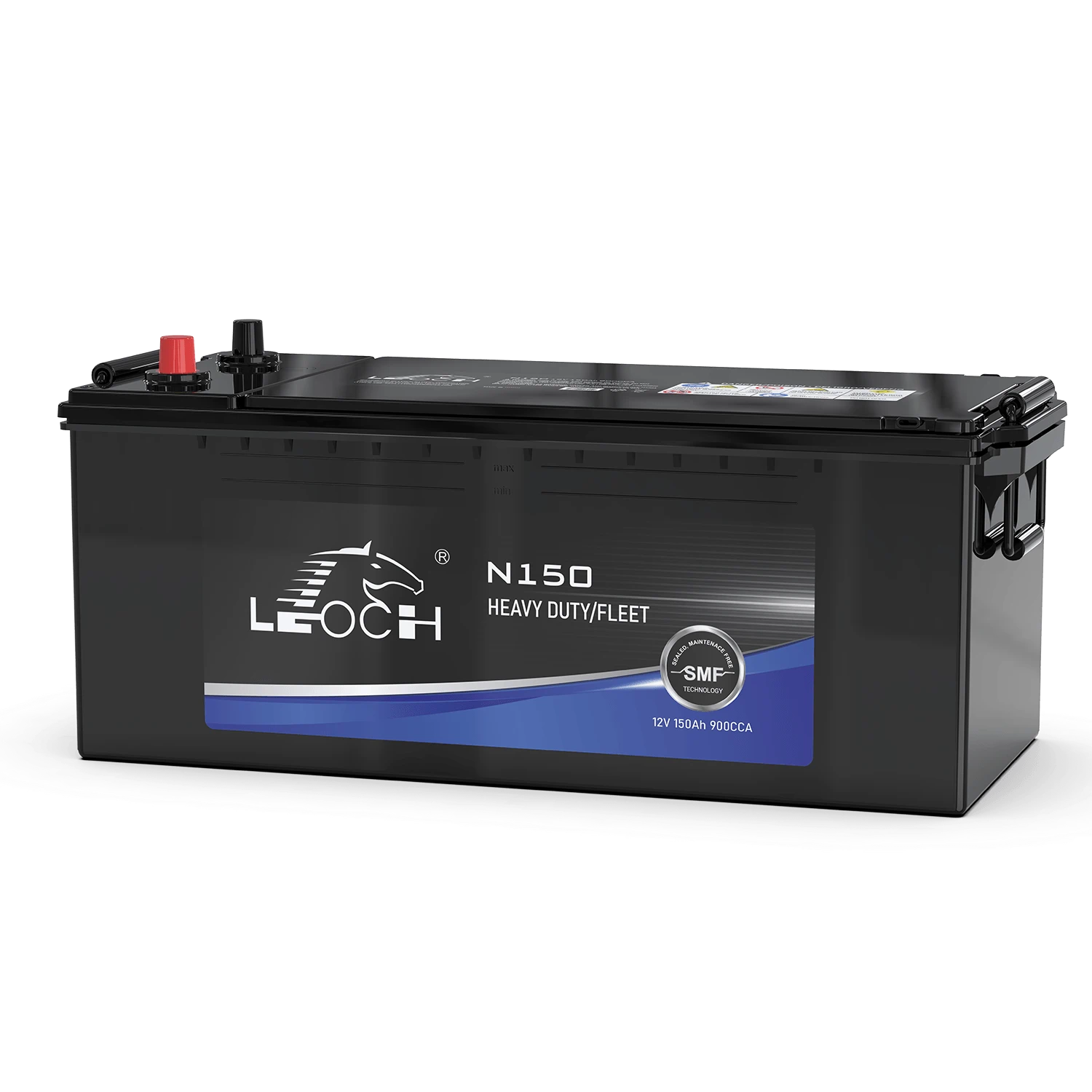

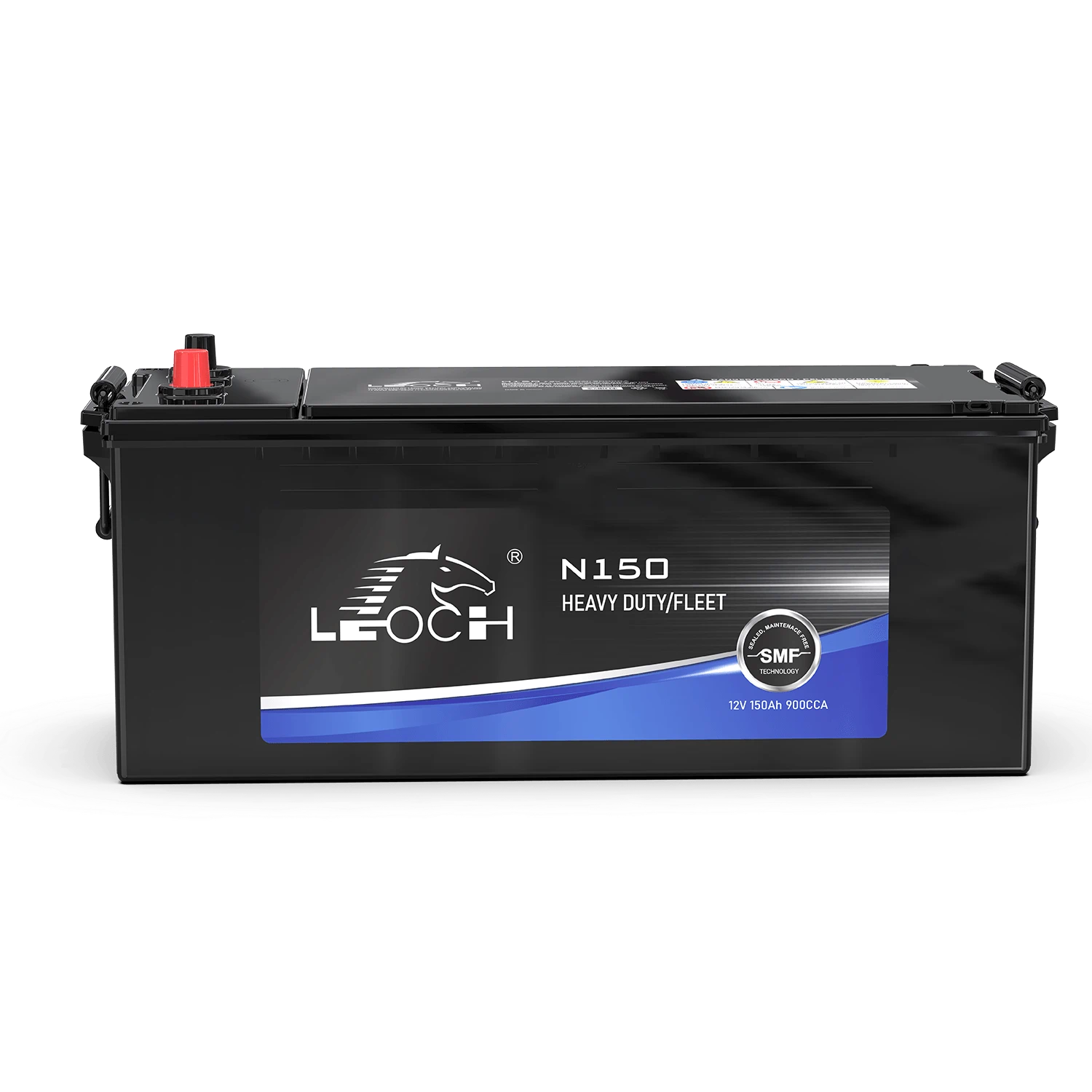

Commercial Starting MF Series

The workhorse choice for heavy-duty commercial fleets, delivering reliable cranking power and consistent performance under high-mileage urban conditions.

Applications:

Light-duty delivery trucks
Medium commercial cargo vehicles
Conventional diesel logistics vans
Rural transport mini trucks
Short-haul city distribution vehicles

Request a Quote

Key Features

Extended Service Life

Developed for heavy-duty commercial vehicles with extended service life.
Reliable Cold Cranking

Powerful high-current discharge for reliable cold startup.
Vibration Resistance

Advanced plate group fixing technology for superior vibration resistance.
Full Model Range with Wide Compatibility

Parameter List

Swipe View

Model	Series	Magic Eye	Rated Voltage(V)	20hr @1.75V/cell	RC(min)	CCA @-18°C(A)	Length(mm)	Width(mm)	Height(mm)	Weight(kg)	Cell Layout	Terminal	Hold Down	Handle
80F51L	F51	√	12	85	148	550	504	183.5	223	29.1	4	1	B0	TS8
80F51R	F51	√	12	85	148	550	504	183.5	223	29.1	3	1	B0	TS8
110F51L	F51	√	12	115	212	750	504	183.5	223	32.3	4	1	B0	TS8
110F51R	F51	√	12	115	212	750	504	183.5	223	32.3	3	1	B0	TS8
115F51L	F51	√	12	120	223	800	504	183.5	223	32.9	4	1	B0	TS8
115F51R	F51	×	12	120	223	800	504	183.5	223	32.6	3	1	B0	TS8
115F51R	F51	√	12	120	223	800	504	183.5	223	32.9	3	1	B0	TS8
130F51R	F51	√	12	130	245	850	504	183.5	223	34.4	3	1	B0	TS8
135F51R	F51	√	12	130	245	880	504	183.5	223	34.1	3	1	B0	TS8
135F51R	F51	×	12	130	245	880	504	183.5	223	34.1	3	1	B0	TS8
150F51R	F51	√	12	150	290	950	504	183.5	223	37.1	3	1	B0	TS8
120G51R	G51	×	12	120	223	730	510	222	217	35.8	3	1	B0	TS8
130G51R	G51	√	12	130	245	800	510	222	217	37.2	3	1	B0	TS8
135G51R	G51	√	12	135	256	800	510	222	217	37.3	3	1	B0	TS8
135G51L	G51	√	12	135	256	800	510	222	217	37.3	4	1	B0	TS8
140G51L	G51	√	12	140	267	850	510	222	217	38.2	4	1	B0	TS8
140G51LR	G51	√	12	140	267	850	510	222	217	38.2	3	1	B0	TS8
145G51R	G51	×	12	150	290	900	510	222	217	39	3	1	B0	TS8
145G51R	G51	√	12	150	290	900	510	222	217	39	3	1	B0	TS8
145G51L	G51	√	12	150	290	900	510	222	217	39	4	1	B0	TS8
150G51L	G51	√	12	155	301	900	510	222	217	39.8	4	1	B0	TS8
150G51R	G51	√	12	155	301	900	510	222	217	39.8	3	1	B0	TS8
160G51L	G51	√	12	160	313	950	510	222	217	40.3	4	1	B0	TS8
160G51R	G51	√	12	160	313	950	510	222	217	40.3	3	1	B0	TS8
165G51R	G51	√	12	165	324	950	510	222	217	40.4	3	1	B0	TS8
165G51R	G51	√	12	165	324	1000	510	222	217	41.2	3	1	B0	TS8
170G51L	G51	√	12	170	336	1000	510	222	217	41.4	4	1	B0	TS8
170G51R	G51	√	12	170	336	1000	510	222	217	41.4	3	1	B0	TS8
170G51R	G51	×	12	170	336	1000	510	222	217	41.5	3	1	B0	TS8
175G51L	G51	√	12	175	348	1050	510	222	217	42.1	4	1	B0	TS8
175G51R	G51	√	12	175	348	1050	510	222	217	42.1	3	1	B0	TS8
175G51R	G51	√	12	175	348	1050	510	222	217	42.1	3	1	B0	TS8
195G51R	G51	√	12	180	360	1080	510	222	217	43	3	1	B0	TS8
195G51R	G51	√	12	180	360	1080	510	222	217	43.5	3	1	B0	TS8
195G51L	G51	√	12	180	360	1080	510	222	217	43.5	4	1	B0	TS8
195G51L	G51	√	12	180	360	1080	510	222	217	43	4	1	B0	TS8
195G51L	G51	×	12	180	360	1000	510	222	217	45	4	1	B0	TS8
195G51R	G51	×	12	180	360	1000	510	222	217	45	3	1	B0	TS8
67038	H52	√	12	170	336	940	518	274	236.5	49.9	4	1	B0	TS8
67039	H52	√	12	170	336	940	518	274	236.5	49.9	3	1	B0	TS8
68040	H52	√	12	180	360	1000	518	274	236.5	51.4	4	1	B0	TS8
68044	H52	√	12	180	360	1000	518	274	236.5	51.4	3	1	B0	TS8
69076	H52	√	12	190	383	1050	518	274	236.5	52	4	1	B0	TS8
69077	H52	√	12	190	383	1050	518	274	236.5	52	3	1	B0	TS8
71033	H52	√	12	210	432	1150	518	274	236.5	54.6	4	1	B0	TS8
71035	H52	√	12	210	432	1150	518	274	236.5	54.6	3	1	B0	TS8
155H52L	H52	√	12	165	324	900	521	261	240.5	49.2	4	1	B0	TS8
155H52R	H52	√	12	165	324	900	521	261	240.5	49.2	3	1	B0	TS8
155H52L	H52	√	12	165	324	920	521	261	240.5	49.5	4	1	B0	TS8
155H52R	H52	√	12	165	324	920	521	261	240.5	49.5	3	1	B0	TS8
155H52R	H52	×	12	165	324	950	521	261	240.5	49.2	3	1	B0	TS8
160H52L	H52	×	12	170	336	940	521	261	240.5	50.3	4	1	B0	TS8
160H52R	H52	×	12	170	336	940	521	261	240.5	50.3	3	1	B0	TS8
175H52L	H52	√	12	175	348	960	518	274	236.5	50.5	4	1	B0	TS8
175H52R	H52	√	12	175	348	960	518	274	236.5	50.5	3	1	B0	TS8
175H52L	H52	√	12	175	348	960	521	261	240.5	51	4	1	B0	TS8
175H52R	H52	√	12	175	348	960	521	261	240.5	51	3	1	B0	TS8
178H52L	H52	√	12	180	360	1000	521	261	240.5	51.8	4	1	B0	TS8
178H52R	H52	√	12	180	360	1000	521	261	240.5	51.8	3	1	B0	TS8
180H52R	H52	√	12	190	383	1050	521	261	250	53.3	3	4	B0	TS8
180H52L	H52	√	12	190	383	1050	521	261	250	52.5	4	1	B0	TS8
180H52R	H52	√	12	190	383	1050	521	261	250	52.5	3	1	B0	TS8
180H52R	H52	×	12	190	383	1050	521	261	240.5	52.5	3	1	B0	TS8
190H52L	H52	√	12	200	407	1100	521	261	240.5	54.1	4	1	B0	TS8
190H52R	H52	√	12	200	407	1100	521	261	240.5	54.1	3	1	B0	TS8
200H52L	H52	√	12	210	432	1150	521	261	240.5	54.9	4	1	B0	TS8
200H52R	H52	√	12	210	432	1150	521	261	240.5	54.9	3	1	B0	TS8
210H52R	H52	×	12	220	456	1280	521	261	240.5	57.1	3	1	B0	TS8
210H52L	H52	√	12	220	456	1280	521	261	240.5	57.1	4	1	B0	TS8
210H52R	H52	√	12	220	456	1280	521	261	240.5	57.1	3	1	B0	TS8
225H52R	H52	√	12	225	468	1280	518	274	237.5	56.6	3	1	B0	TS8
