Automotive Starting MF Series

The global standard for traditional vehicles, delivering reliable, maintenance-free Starting, Lighting, and Ignition (SLI) performance.

Applications:

Conventional non-start-stop gasoline cars
Family daily commuter vehicles
Rural low-electrical-load passenger cars
Basic economical compact cars
Occasional long-distance private vehicles

Request a Quote

Key Features

Maintenance-Free Design
Full Model Range Covering ~95% Vehicles
High CCA & Great Starting Performance
Special Alloy Grids for Better Corrosion Resistance
Low-Resistance PE Separators

With high porosity, fine pores and stable chemistry.
Patented Double-Lid Labyrinth Structure.

Parameter List

Swipe View

Model	Series	Magic Eye	Rated Voltage(V)	20hr @1.75V/cell	RC(min)	CCA @-18°C(A)	Length(mm)	Width(mm)	Height(mm)	Weight(kg)	Cell Layout	Terminal	Hold Down	Handle
24-590	BCI24	√	12	70	118	590	269	173	224	17.4	1	1	B01	TS5
34R-520	BCI34	√	12	60	98	520	268	172	205	15.6	0	1	B01	TS5
34-520	BCI34	√	12	60	98	520	268	172	205	15.6	1	1	B01	TS5
34R-610	BCI34	×	12	68	114	610	268	172	205	16.8	0	1	B01	TS5
34-610	BCI34	×	12	68	114	610	268	172	205	16.8	1	1	B01	TS5
58-390	BCI58	×	12	45	70	390	240	174	177	12.3	1	1	B01	TS5
58-390	BCI58	√	12	45	70	390	240	174	177	12.3	1	1	B01	TS5
58-470	BCI58	×	12	50	79	470	240	174	177	12.8	1	1	B01	TS5
58R-520	BCI58	√	12	55	88	520	240	174	177	13.4	0	1	B01	TS5
58-520	BCI58	√	12	55	88	520	240	174	177	13.4	1	1	B01	TS5
58R-550	BCI58	×	12	55	88	550	240	174	177	13.8	0	1	B01	TS5
58-550	BCI58	×	12	55	88	550	240	174	177	13.8	1	1	B01	TS5
65-670	BCI65	×	12	80	138	670	298	190	192	21.1	1	1	B01	TS4
65-500	BCI65	√	12	65	108	500	298	190	192	18.2	1	1	B01	TS4
78-520	BCI78	√	12	60	98	520	268	180	182	15.7	6	20	B01	TS5
78-520	BCI78	×	12	60	98	520	268	180	182	15.7	6	20	B01	TS5
78-570	BCI78	×	12	65	108	570	268	180	182	16.2	6	20	B01	TS5
78-570	BCI78	√	12	65	108	570	268	180	182	16.2	6	20	B01	TS5
78-720	BCI78	√	12	70	118	720	268	180	186	19.3	6	20	B01	TS5
85-520	BCI85	×	12	60	98	520	229	171	205	14.5	0	1	B01	TS3
85-550	BCI85	×	12	63	104	550	229	171	205	15.2	0	1	B01	TS3
85-480	BCI85	×	12	55	88	480	229	171	205	14	0	1	B01	TS3
86-520	BCI86	×	12	60	98	520	229	171	205	14.5	1	1	B01	TS3
86-550	BCI86	×	12	63	104	550	229	171	205	15.2	1	1	B01	TS3
26-575	G26	×	12	50	90	575	219.5	172	199	14	1	1	B0	TS4
31AT-630	G31	√	12	80	138	630	329	171	237	21.9	1	12	B0	TS9
31T-630	G31	√	12	80	138	630	329	171	237	21.8	1	13	B0	TS9
31A-630L	G31	√	12	80	138	630	329	171	235.5	21.8	0	5	B0	TS9
31A-630	G31	√	12	80	138	630	329	171	235.5	21.8	1	5	B0	TS9
31AT-700	G31	√	12	90	158	700	329	171	237	23	1	12	B0	TS9
31T-750L	G31	√	12	95	169	750	329	171	237	23.6	0	13	B0	TS9
31T-750	G31	√	12	95	169	750	329	171	237	23.6	1	13	B0	TS9
31T-750	G31	×	12	95	169	750	329	171	237	23.6	1	13	B0	TS9
31AT-800	G31	√	12	100	180	800	329	171	237	24.2	1	12	B0	TS9
31T-800	G31	×	12	100	180	800	329	171	237	24.2	8	13	B0	TS9
31A-850	G31	√	12	105	190	850	329	171	235.5	24.8	1	5	B0	TS9
31A-850L	G31	√	12	105	190	850	329	171	235.5	24.8	0	5	B0	TS9
31AT-850	G31	√	12	105	190	850	329	171	237	25.2	1	12	B0	TS9
31T-850	G31	√	12	105	190	850	329	171	237	24.8	1	13	B0	TS9
31T-925	G31	×	12	100	180	925	329	171	237	25.1	8	13	B0	TS9
31A-925	G31	√	12	100	180	925	329	171	235.5	25.1	1	5	B0	TS9
31T-950	G31	×	12	105	190	950	329	171	237	25.7	8	13	B0	TS9
31A-925	G31	×	12	100	180	925	329	171	235.5	25.1	1	5	B0	TS9
31A-950	G31	×	12	105	190	950	329	171	235.5	25.7	1	5	B0	TS9
31AT-1000	G31	√	12	115	212	1000	329	171	237	27.8	1	12	B0	TS9

Model	Series	Magic Eye	Rated Voltage(V)	20hr @1.75V/cell	RC(min)	CCA @-18°C(A)	Length(mm)	Width(mm)	Height(mm)	Weight(kg)	Cell Layout	Terminal	Hold Down	Handle
53511	L0	×	12	35	52	300	175	175	190	10	0	1	B13	/
54011	L0	√	12	40	61	350	175	175	190	10.6	0	1	B13	/
54011	L0	×	12	40	61	350	175	175	190	10.6	0	1	B13	/
54540	L0	√	12	45	70	400	175	175	190	11.3	0	1	B13	/
54459	L1	×	12	44	68	410	207	175	190	12.2	0	1	B13	TS2
54459	L1	√	12	44	68	410	207	175	190	12.2	0	1	B13	TS2
55025	L1	√	12	49	77	450	207	175	190	12.8	0	1	B13	TS2
55025	L1	×	12	49	77	450	207	175	190	12.8	0	1	B13	TS2
55026	L1	√	12	49	77	450	207	175	190	12.8	1	1	B13	TS2
54049	L2	√	12	40	61	330	242	175	190	12.9	0	1	B13	TS2
54554	L2	√	12	45	70	350	242	175	190	13.5	0	1	B13	TS2
54550	L2	√	12	45	70	350	242	175	190	13.5	1	1	B13	TS2
55532	L2	√	12	50	79	450	242	175	190	14	0	1	B13	TS2
55030	L2	√	12	50	79	450	242	175	190	14	1	1	B13	TS2
55530/55559/55573	L2	√	12	55	88	500	242	175	190	14.5	0	1	B13	TS2
55565	L2	√	12	55	88	500	242	175	190	14.6	1	1	B13	TS2
55530/55559/55573	L2	×	12	55	88	500	242	175	190	14.6	0	1	B13	TS2
55565	L2	×	12	55	88	500	242	175	190	14.6	1	1	B13	TS2
56219	L2	√	12	60	98	550	242	175	190	15.1	0	1	B13	TS2
56219	L2	×	12	60	98	550	242	175	190	15.1	0	1	B13	TS2
56221	L2	√	12	60	98	550	242	175	190	15.1	1	1	B13	TS2
56221	L2	×	12	60	98	550	242	175	190	15.1	1	1	B13	TS2
55453	L3	√	12	54	87	470	278	175	190	15.5	0	1	B13	TS6
56645	L3	√	12	66	110	560	278	175	190	16.6	0	1	B13	TS6
56646	L3	×	12	66	110	560	278	175	190	16.6	1	1	B13	TS6
57220	L3	√	12	72	122	620	278	175	190	17.2	0	1	B13	TS6
57220	L3	×	12	72	122	620	278	175	190	17.2	0	1	B13	TS6
57219	L3	√	12	72	122	620	278	175	190	17.2	1	1	B13	TS6
57219	L3	×	12	72	122	620	278	175	190	17.2	1	1	B13	TS6
57545	L3	√	12	75	128	640	278	175	190	17.7	0	1	B13	TS6
57545	L3	×	12	75	128	640	278	175	190	17.7	0	1	B13	TS6
57546	L3	√	12	75	128	640	278	175	190	17.7	1	1	B13	TS6
56518	L4	√	12	65	108	500	314	174	190	18	0	1	B13	TS6
58043	L4	√	12	80	138	650	314	174	190	19.7	0	1	B13	TS6
58043	L4	×	12	80	138	650	314	174	190	19.7	0	1	B13	TS6
58224	L4	√	12	82	142	700	314	174	190	20.2	0	1	B13	TS6
58521	L4	√	12	85	148	820	314	174	190	21.9	1	1	B13	TS6
57019	L5	√	12	70	118	520	351	174	188	19.9	0	1	B13	TS6
57528	L5	√	12	75	128	560	351	174	188	20.2	0	1	B13	TS6
58025	L5	√	12	80	138	600	351	174	188	20.5	0	1	B13	TS6
58520	L5	×	12	85	148	650	351	174	188	21	0	1	B13	TS6
58827	L5	√	12	88	154	690	351	174	188	22	0	1	B13	TS6
58827	L5	×	12	88	154	690	351	174	188	22	0	1	B13	TS6
60038	L5	√	12	98	175	770	351	174	188	23.1	0	1	B13	TS6
60038	L5	×	12	98	175	770	351	174	188	23.1	0	1	B13	TS6
60044	L5	×	12	100	179	810	351	174	188	23.5	0	1	B13	TS6
60044	L5	√	12	100	179	810	351	174	188	23.5	0	1	B13	TS6
61042	L6	×	12	110	201	850	394	175	190	25.5	0	1	B13	TS6
61042	L6	√	12	110	201	850	394	175	190	25.5	0	1	B13	TS6

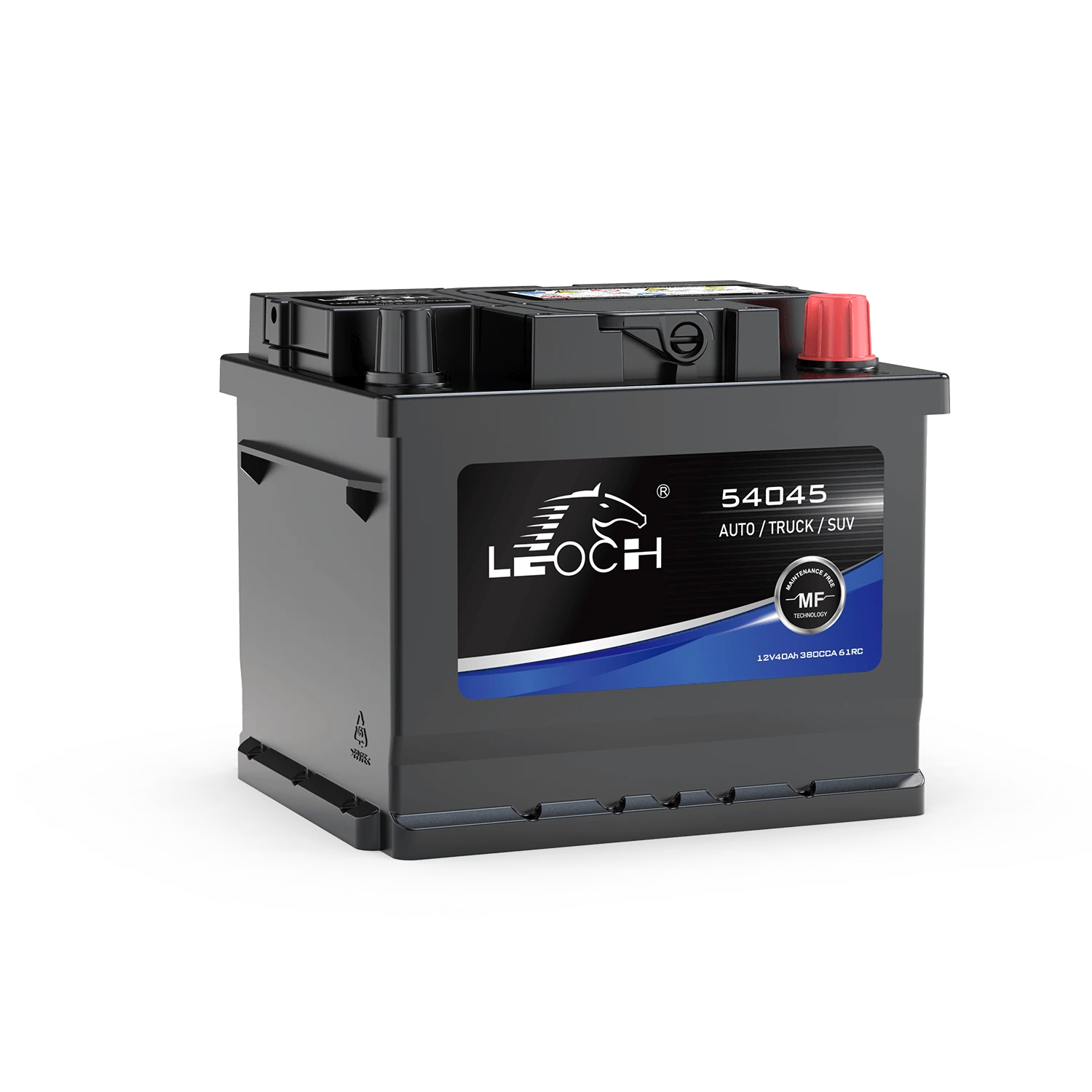

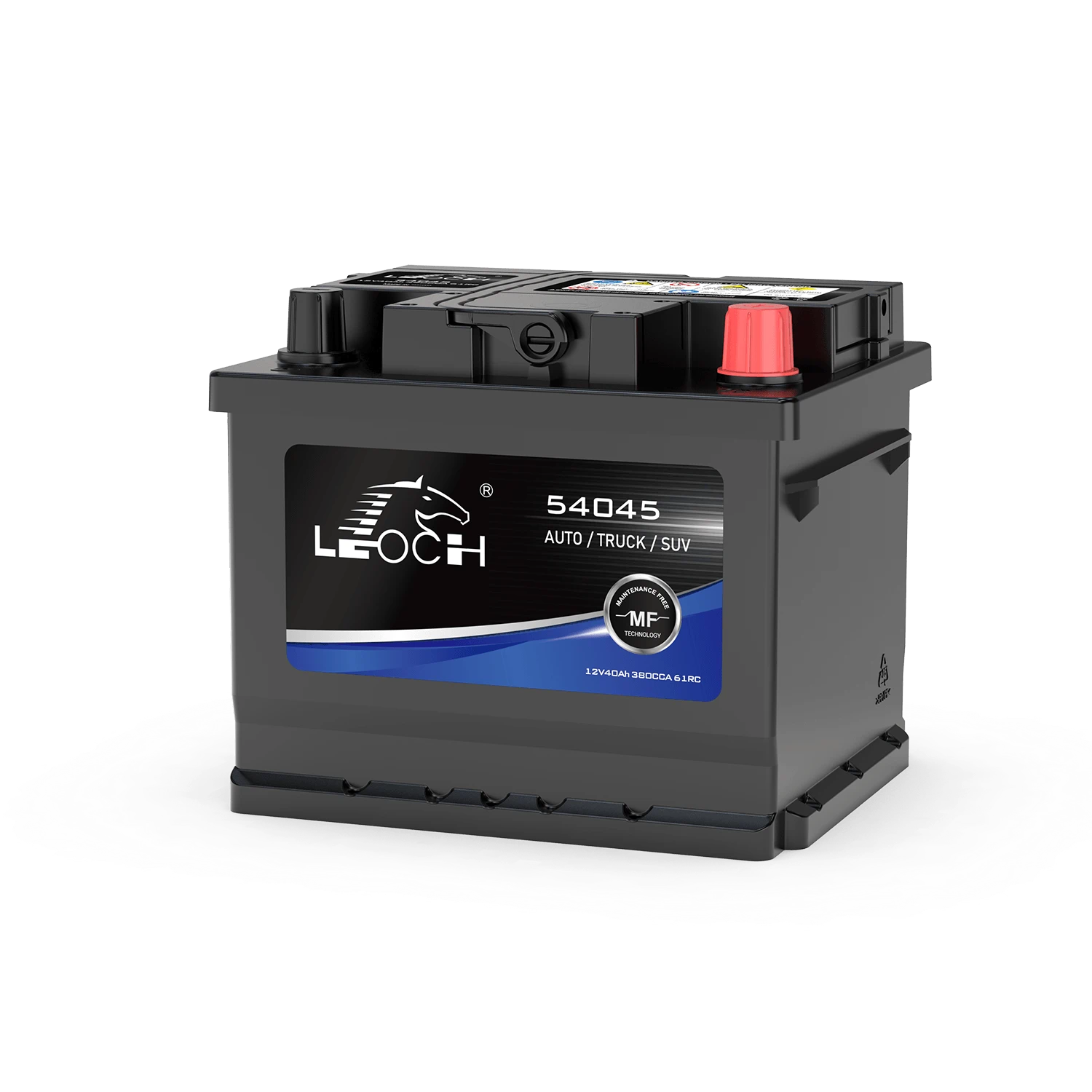

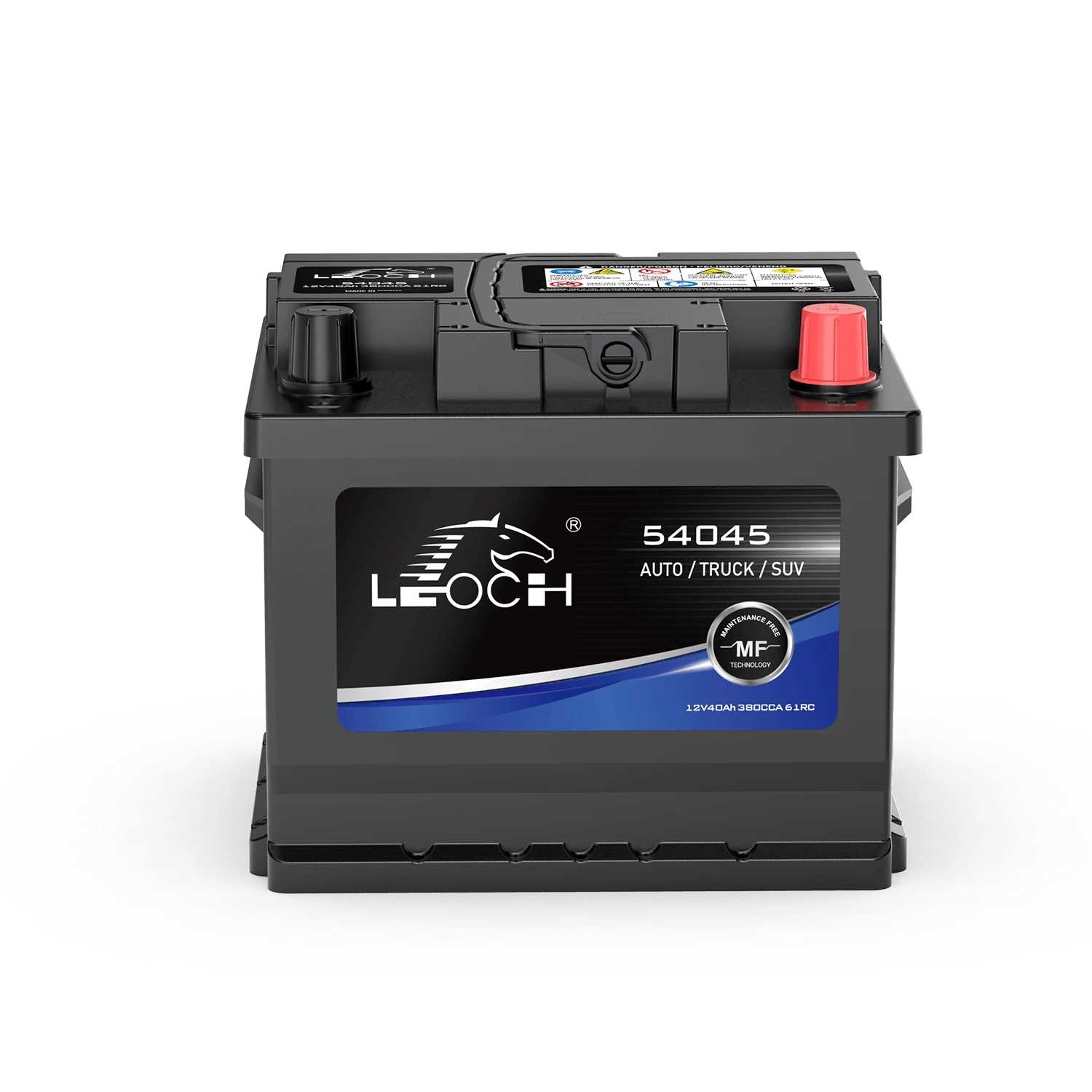

54045	LB1	√	12	40	61	380	206	174	173	11	0	1	B13	TS2
54045	LB1	×	12	40	61	380	206	174	173	11	0	1	B13	TS2
54465	LB1	√	12	44	68	410	206	174	173	11.6	0	1	B13	TS2
54465	LB1	×	12	44	68	410	206	174	173	11.6	0	1	B13	TS2
54466	LB1	√	12	44	68	410	206	174	173	11.6	1	1	B13	TS2
54466	LB1	×	12	44	68	410	206	174	173	11.6	1	1	B13	TS2
54513	LB2	√	12	45	70	430	242	175	175	12.7	0	1	B13	TS2
54514	LB2	√	12	45	70	430	242	175	175	12.7	1	1	B13	TS2
54519	LB2	×	12	45	70	430	242	175	175	12.7	1	1	B13	TS2
55040	LB2	×	12	50	79	470	242	175	175	13.2	0	1	B13	TS2
55046	LB2	×	12	50	79	470	242	175	175	13.2	1	1	B13	TS2
55519	LB2	√	12	55	88	520	242	175	175	13.7	0	1	B13	TS2
55519	LB2	×	12	55	88	520	242	175	175	13.7	0	1	B13	TS2
55059	LB3	√	12	50	79	420	276	174	174	14.6	0	1	B13	TS1
55415	LB3	×	12	54	87	460	276	174	174	15.1	0	1	B13	TS1
56067	LB3	×	12	60	98	520	276	174	174	15.4	0	1	B13	TS1
56420	LB3	×	12	65	108	570	276	174	174	16	0	1	B13	TS1
56420	LB3	√	12	65	108	570	276	174	174	16	0	1	B13	TS1
57113	LB3	×	12	68	114	600	276	174	174	16.4	0	1	B13	TS1
57113	LB3	√	12	68	114	600	276	174	174	16.4	0	1	B13	TS1
57313	LB3	√	12	70	118	620	278	175	175	17.2	1	1	B13	TS6
57034	LB3	√	12	70	118	720	276	174	174	17.6	0	1	B13	TS1
56825	LB4	√	12	68	114	550	314	174	174	17.7	0	1	B13	TS6
57539	LB4	√	12	75	128	660	314	174	174	18.4	0	1	B13	TS6
58211	LB4	√	12	78	134	700	314	174	174	19	0	1	B13	TS6
58015	LB5	√	12	80	138	650	351	174	173	20.2	0	1	B13	TS6
58515	LB5	√	12	85	148	670	351	174	173	20.6	0	1	B13	TS6

Model	Series	Magic Eye	Rated Voltage(V)	20hr @1.75V/cell	RC(min)	CCA @-18°C(A)	Length(mm)	Width(mm)	Height(mm)	Weight(kg)	Cell Layout	Terminal	Hold Down	Handle
36B20L	B20	√	12	32	47	310	195	126	222	9.2	0	3	B0	TS1
36B20L	B20	×	12	32	47	310	195	126	222	9.2	0	3	B0	TS1

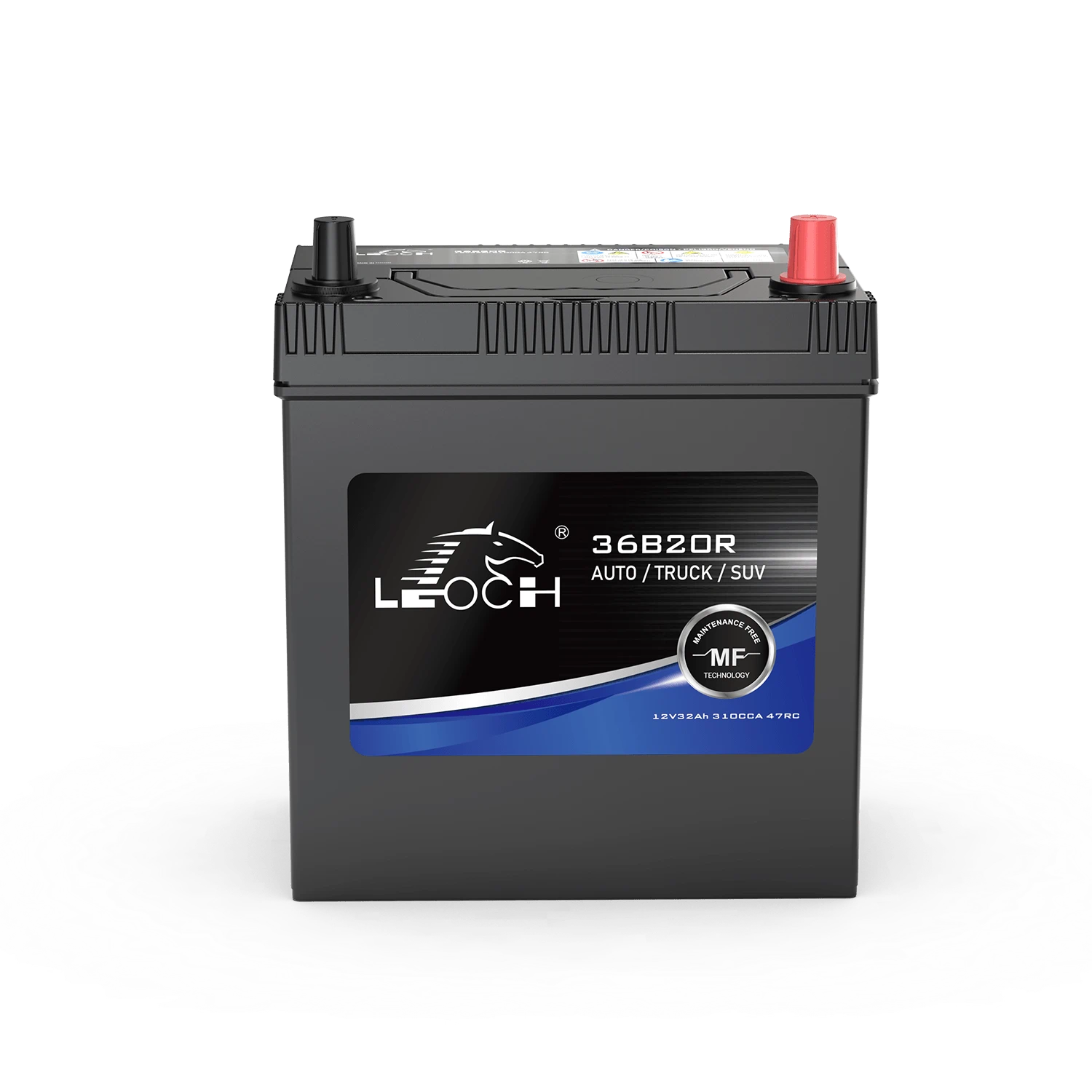

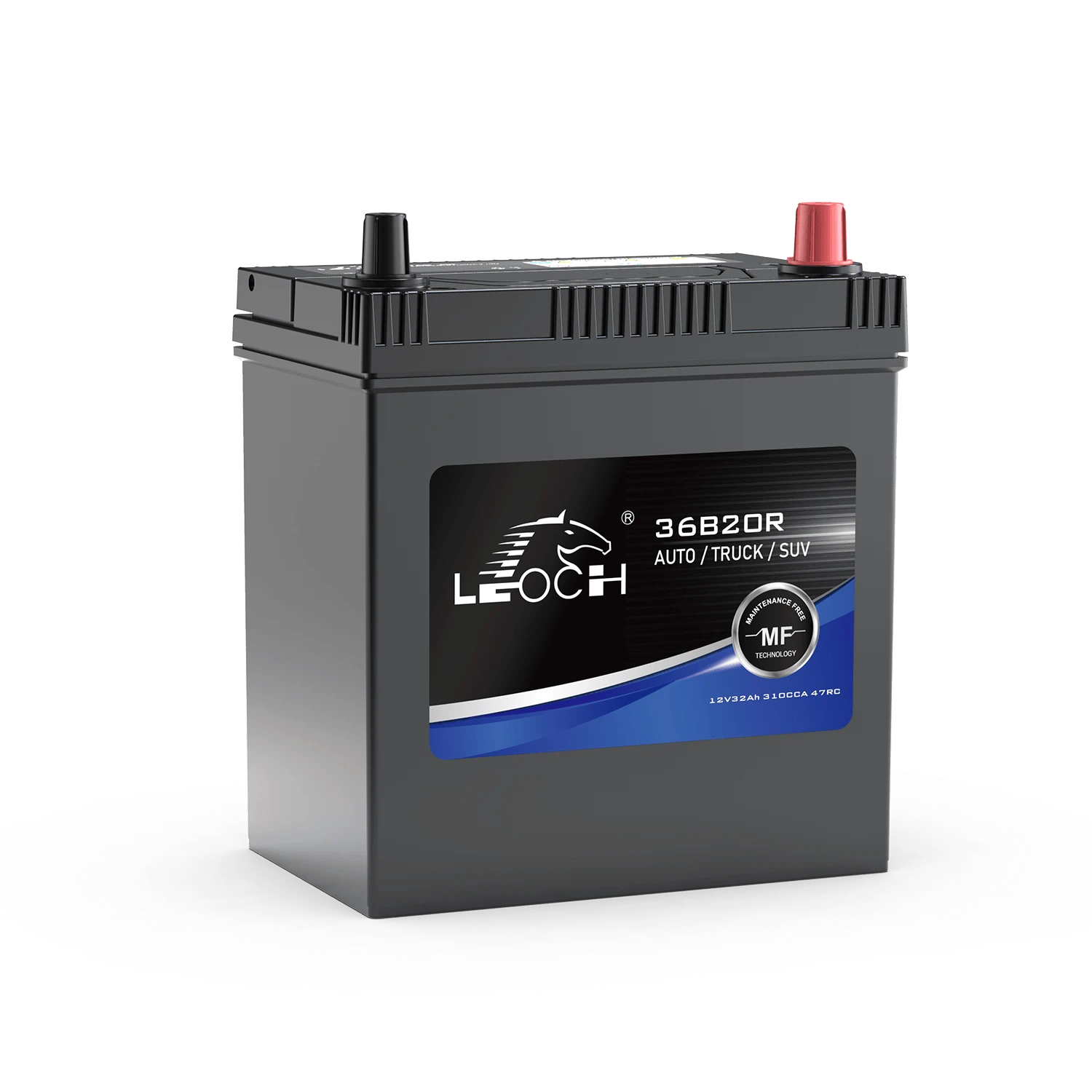

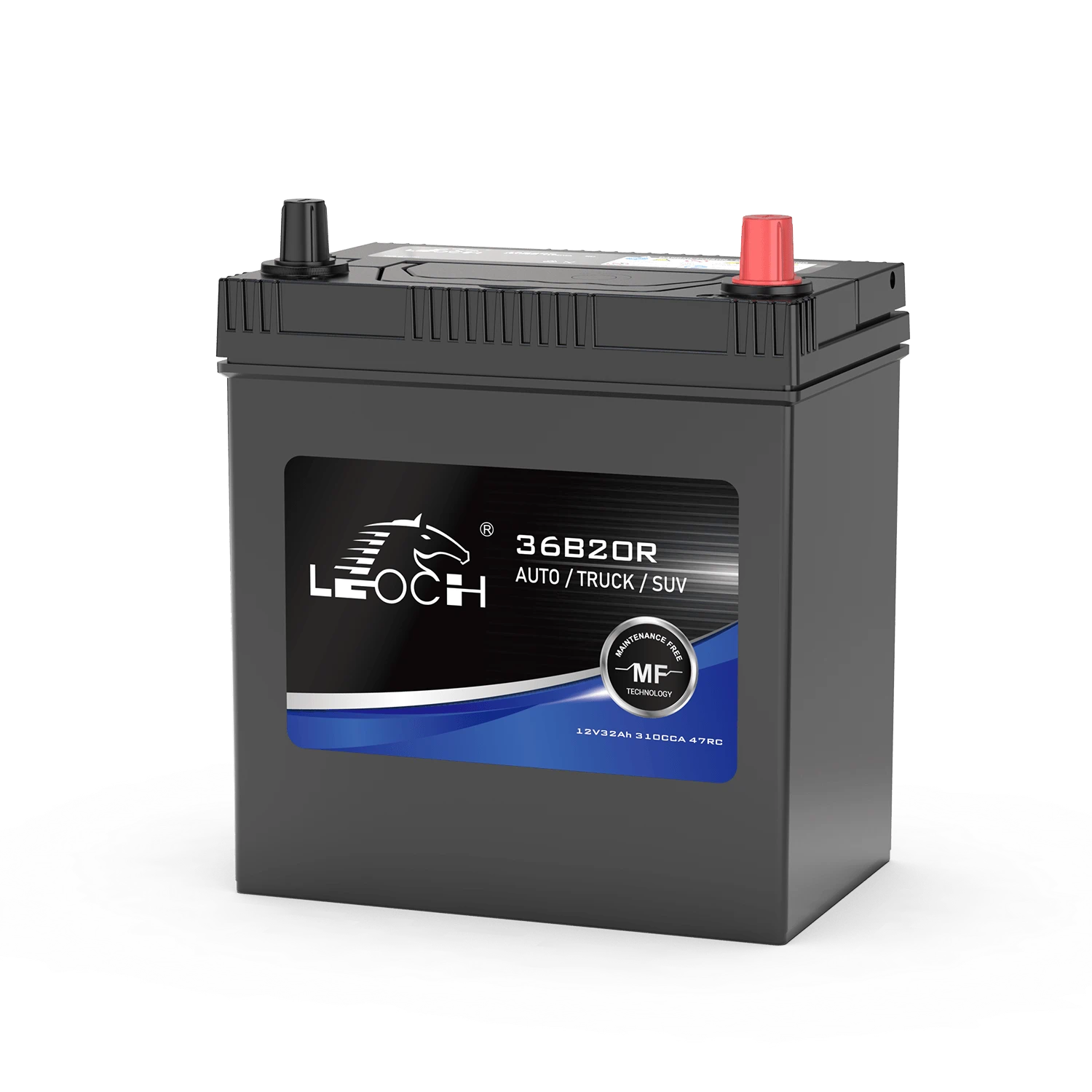

36B20R	B20	√	12	32	47	310	195	126	222	9.2	1	3	B0	TS1
36B20R	B20	×	12	32	47	310	195	126	222	9.2	1	3	B0	TS1
38B20LS	B20	×	12	36	54	335	195	126	222	9.7	0	1	B0	TS1
38B20RS	B20	×	12	36	54	335	195	126	222	9.7	1	1	B0	TS1
38B20RS	B20	√	12	36	54	335	195	126	222	9.7	1	1	B0	TS1
38B20LS	B20	√	12	36	54	335	195	126	222	9.7	0	1	B0	TS1
38B20L	B20	√	12	36	54	335	195	126	222	9.6	0	3	B0	TS1
38B20L	B20	×	12	36	54	335	195	126	222	9.6	0	3	B0	TS1
38B20R	B20	√	12	36	54	335	195	126	222	9.6	1	3	B0	TS1
38B20R	B20	×	12	36	54	335	195	126	222	9.6	1	3	B0	TS1
36B24L	B24	√	12	32	47	290	236	128	222	10.3	0	3	B0	TS1
36B24LS	B24	√	12	32	47	290	236	128	222	10.5	0	1	B0	TS1
36B24RS	B24	√	12	32	47	290	236	128	222	10.5	1	1	B0	TS1
38B24LS	B24	√	12	36	54	320	236	128	222	10.9	0	1	B0	TS1
38B24RS	B24	√	12	36	54	320	236	128	222	10.9	1	1	B0	TS1
38B24RS	B24	×	12	36	54	320	236	128	222	10.9	1	1	B0	TS1
38B24L	B24	√	12	36	54	320	236	128	222	10.7	0	3	B0	TS1
38B24R	B24	√	12	36	54	320	236	128	222	10.7	1	3	B0	TS1
40B24L	B24	×	12	40	61	350	236	128	222	11.2	0	3	B0	TS1
40B24L	B24	√	12	40	61	350	236	128	222	11.2	0	3	B0	TS1
40B24R	B24	×	12	40	61	350	236	128	222	11.2	1	3	B0	TS1
40B24R	B24	√	12	40	61	350	236	128	222	11.2	1	3	B0	TS1
40B24LS	B24	×	12	40	61	380	236	128	222	11.4	0	1	B0	TS1
40B24LS	B24	√	12	40	61	380	236	128	222	11.4	0	1	B0	TS1
40B24RS	B24	×	12	40	61	380	236	128	222	11.4	1	1	B0	TS1
40B24RS	B24	√	12	40	61	380	236	128	222	11.4	1	1	B0	TS1
46B24LS	B24	√	12	45	70	380	237	128	222	12	0	1	B0	TS9
46B24LS	B24	×	12	45	70	410	236	128	222	11.7	0	1	B0	TS1
46B24LS	B24	√	12	45	70	410	236	128	222	11.7	0	1	B0	TS1
46B24RS	B24	×	12	45	70	410	236	128	222	11.7	1	1	B0	TS1
46B24RS	B24	√	12	45	70	410	236	128	222	11.7	1	1	B0	TS1
46B24L	B24	×	12	45	70	350	236	128	222	11.6	0	3	B0	TS1
46B24L	B24	√	12	45	70	350	236	128	222	11.6	0	3	B0	TS1
46B24R	B24	×	12	45	70	350	236	128	222	11.6	1	3	B0	TS1
46B24R	B24	√	12	45	70	350	236	128	222	11.6	1	3	B0	TS1
55B24L	B24	√	12	48	75	350	236	128	222	12	0	3	B0	TS1
55B24R	B24	√	12	48	75	350	236	128	222	12	1	3	B0	TS1
50D23L	D23	√	12	55	88	480	231.5	172	223	14.7	0	1	B0	TS1
50D23R	D23	√	12	55	88	480	231.5	172	223	14.7	1	1	B0	TS1
50D23R	D23	×	12	55	88	480	231.5	172	223	14.7	1	1	B0	TS1
55D23L	D23	×	12	60	98	520	231.5	174.5	223	15.2	0	1	B1	TS1
55D23R	D23	√	12	60	98	520	231.5	174.5	223	15.2	1	1	B1	TS1
55D23L	D23	√	12	60	98	520	231.5	174.5	223	15.2	0	1	B1	TS1
75D23L	D23	×	12	63	104	550	231.5	172	223	15.9	0	1	B0	TS1
75D23L	D23	√	12	63	104	550	231.5	172	223	15.9	0	1	B0	TS1
75D23R	D23	×	12	63	104	550	231.5	172	223	15.9	1	1	B0	TS1
75D23R	D23	√	12	63	104	550	231.5	172	223	15.9	1	1	B0	TS1
46D26L	D26	√	12	43	66	360	259	174.8	221	14.8	0	1	B1	TS1
46D26R	D26	√	12	43	66	360	259	174.8	221	14.8	1	1	B1	TS1
48D26L	D26	×	12	50	79	410	259	174.8	221	15.3	0	1	B1	TS1
48D26L	D26	√	12	50	79	410	259	174.8	221	15.3	0	1	B1	TS1
48D26R	D26	×	12	50	79	410	259	174.8	221	15.3	1	1	B1	TS1
48D26R	D26	√	12	50	79	410	259	174.8	221	15.3	1	1	B1	TS1
50D26L	D26	×	12	55	88	450	259	174.8	221	16.1	0	1	B1	TS1
50D26R	D26	×	12	55	88	450	259	174.8	221	16.1	1	1	B1	TS1
55D26L	D26	×	12	60	98	500	259	174.8	221	16.5	0	1	B1	TS1
55D26L	D26	√	12	60	98	500	259	174.8	221	16.5	0	1	B1	TS1
55D26R	D26	×	12	60	98	500	259	174.8	221	16.5	1	1	B1	TS1
55D26R	D26	√	12	60	98	500	259	174.8	221	16.5	1	1	B1	TS1
65D26L	D26	×	12	65	108	540	259	174.8	221	17.2	0	1	B1	TS1
65D26L	D26	√	12	65	108	540	259	174.8	221	17.2	0	1	B1	TS1
65D26R	D26	×	12	65	108	540	259	174.8	221	17.2	1	1	B1	TS1
65D26R	D26	√	12	65	108	540	259	174.8	221	17.2	1	1	B1	TS1
80D26L	D26	√	12	70	118	600	259	174.8	221	17.7	0	1	B1	TS1
80D26L	D26	×	12	70	118	600	259	174.8	221	17.7	0	1	B1	TS1
80D26R	D26	√	12	70	118	600	259	174.8	221	17.7	1	1	B1	TS1
80D26R	D26	×	12	70	118	600	259	174.8	221	17.7	1	1	B1	TS1
85D26R	D26	×	12	75	128	630	259	174.8	221	18.4	1	1	B1	TS1
85D26R	D26	√	12	75	128	630	259	174.8	221	18.4	1	1	B1	TS1
85D26L	D26	√	12	75	128	630	259	174.8	221	18.4	0	1	B1	TS1
90D26L	D26	×	12	80	138	660	259	174.8	221	18.9	0	1	B1	TS1
90D26L	D26	√	12	80	138	660	259	174.8	221	18.9	0	1	B1	TS1
90D26R	D26	√	12	80	138	660	259	174.8	221	18.9	1	1	B1	TS1
55D31L	D31	√	12	55	88	410	303	170	222	17.3	0	1	B1	TS1
55D31R	D31	√	12	55	88	410	303	170	222	17.5	1	1	B1	TS1
58D31L	D31	√	12	60	98	450	303	170	222	17.9	0	1	B1	TS1
58D31R	D31	√	12	60	98	450	303	170	222	17.9	1	1	B1	TS1
60D31L	D31	√	12	65	108	500	303	170	222	18.5	0	1	B1	TS1
60D31L	D31	×	12	65	108	500	303	170	222	18.5	0	1	B1	TS1
60D31R	D31	√	12	65	108	500	303	170	222	18.5	1	1	B1	TS1
60D31R	D31	×	12	65	108	500	303	170	222	18.5	1	1	B1	TS1
65D31L	D31	√	12	70	118	550	303	170	222	19.2	0	1	B1	TS1
65D31R	D31	√	12	70	118	550	303	170	222	19.2	1	1	B1	TS1
75D31L	D31	√	12	75	128	590	303	170	222	19.7	0	1	B1	TS1
75D31L	D31	×	12	75	128	590	303	170	222	19.7	0	1	B1	TS1
75D31R	D31	×	12	75	128	590	303	170	222	19.7	1	1	B1	TS1
75D31R	D31	√	12	75	128	590	303	170	222	19.7	1	1	B1	TS1
95D31L	D31	√	12	80	138	630	303	170	222	20.2	0	1	B1	TS1
95D31L	D31	×	12	80	138	630	303	170	222	20.2	0	1	B1	TS1
95D31R	D31	√	12	80	138	630	303	170	222	20.2	1	1	B1	TS1
95D31R	D31	×	12	80	138	630	303	170	222	20.2	1	1	B1	TS1
100D31L	D31	√	12	83	144	660	303	170	222	20.9	0	1	B1	TS1
100D31R	D31	√	12	83	144	660	303	170	222	20.9	1	1	B1	TS1
105D31L	D31	√	12	90	158	720	303	170	222	22.1	0	1	B1	TS1
105D31L	D31	×	12	90	158	720	303	170	222	22.1	0	1	B1	TS1
105D31R	D31	√	12	90	158	720	303	170	222	22.1	1	1	B1	TS1
105D31R	D31	×	12	90	158	720	303	170	222	22.1	1	1	B1	TS1
65E41R	E41	√	12	70	118	510	408	170	233	22.5	1	1	B0	TS8
75E41R	E41	√	12	80	138	590	408	170	233	23.7	1	1	B0	TS8
85E41L	E41	√	12	90	158	670	408	170	233	24.8	0	1	B0	TS8
85E41R	E41	√	12	90	158	670	408	170	233	24.8	1	1	B0	TS8
85E41R	E41	×	12	90	158	670	408	170	233	24.8	1	1	B0	TS8
90E41R	E41	√	12	95	169	700	408	170	233	25.3	1	1	B0	TS8
90E41L	E41	×	12	95	169	700	408	170	233	25.3	0	1	B0	TS8
90E41L	E41	√	12	95	169	700	408	170	233	25.3	0	1	B0	TS8
95E41L	E41	×	12	100	179	750	408	170	233	25.9	0	1	B0	TS8
95E41L	E41	√	12	100	179	750	408	170	233	25.9	0	1	B0	TS8
95E41R	E41	×	12	100	179	750	408	170	233	25.9	1	1	B0	TS8
95E41R	E41	√	12	100	179	750	408	170	233	25.9	1	1	B0	TS8
105E41L	E41	×	12	120	223	750	408	170	233	27.5	0	1	B0	TS8
105E41R	E41	√	12	120	223	750	408	170	233	27.5	1	1	B0	TS8
